3D Lidar Scanner MK2


Electronics - 14-10-2020

Presentation

Lidars (LIgh Detection And Ranging) measure distances by illuminating the target with laser light and measuring the reflection with a sensor. When combined with a mechanical way to aim the beam, they can output 2D or 3D point clouds.

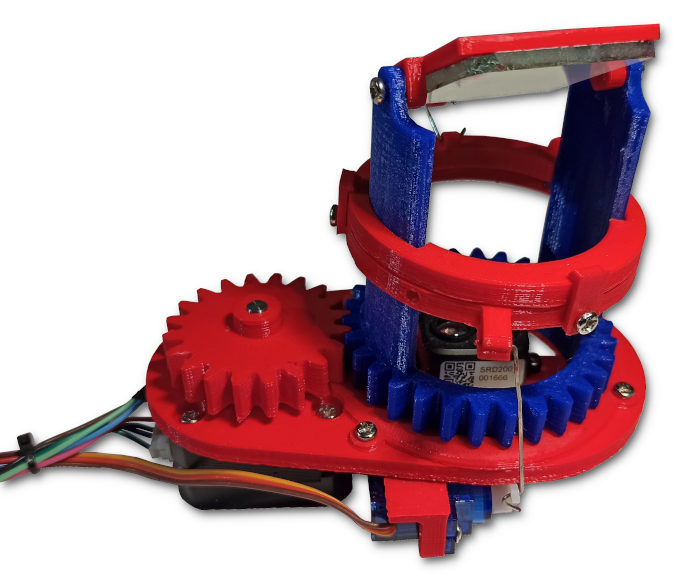

Picture of my 3D lidar sensor My open-source 3D lidar sensor.

This data is very useful for robotics or autonomous vehicles for instance, when trying to navigate in a complex environment. It is often combined with camera feeds and other sensors, to compensate for the limitations of each technology.

3D lidars are often expensive and not easily available to hobbyists. Hence, I designed and built a 3D-printable, open-source Lidar to experiment with this technology.

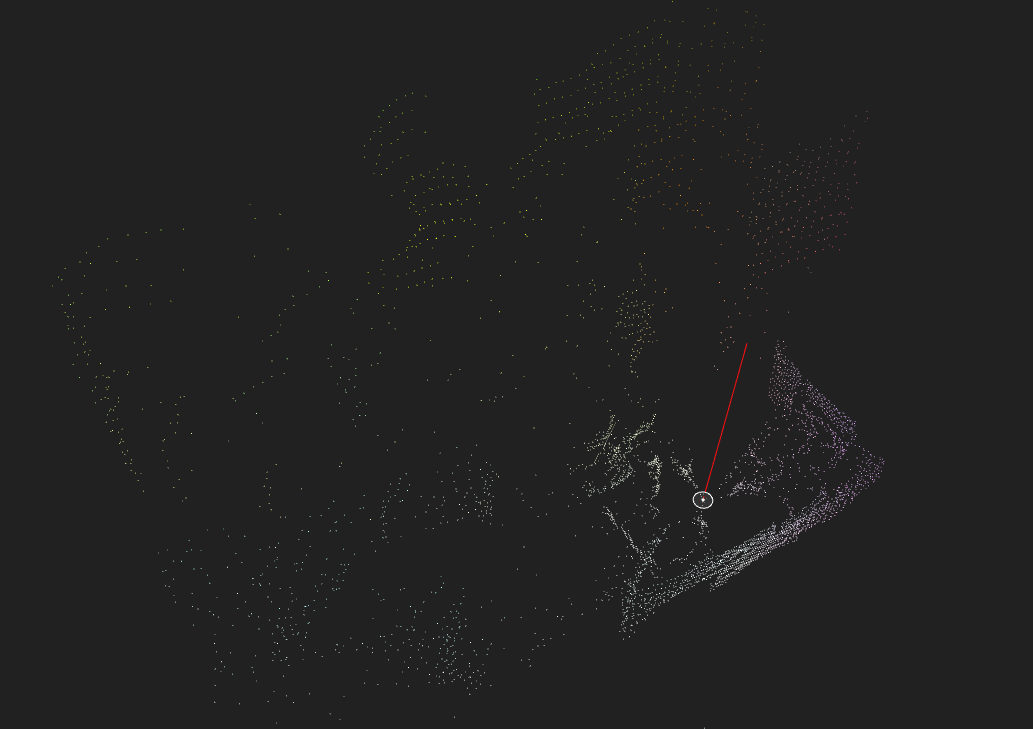

A point cloud from Lidar data A typical Lidar image, taken with the unit built for this project.

In a previous project, I made a basic 3D Lidar scanner by moving a Lidar Lite sensor with a DIY pan/tilt mount. This iteration improves on this idea with a better mechanical design to achieve much faster scanning rate and higher resolution.

This article describes the design, construction and usage of this sensor. This project's sources and files are released on GitHub.

Video

This video shows the project:


Design

This section describes the design and construction of this sensor: mechanical, electronics, firmware and code.

The device's specifications are:

Specification Value
Resolution ρ = 1cm, θ = 0.15°, φ = 0.3°
Max. range 12m (8m for TF-Luna)
Power supplies 12V @ 1A and 5V @ 200mA
Data rate 100Hz
Data interface Serial over USB @ 115200 baud
Rotational speed Max. 150 RPM, recommended 60 RPM.
Physical dimensions 85 × 115 × 125mm, 250g (ignoring electronics)
BOM cost ~$40

Mechanical

The core idea with this design is that there is no moving electronic part. To achieve this, a mirror reflects the laser beam to and from the Lidar unit. To implement this concept, the delicate part is that there has to be 2 completely independent axes: yaw and pitch/tilt.

I modeled it with SolidWorks:

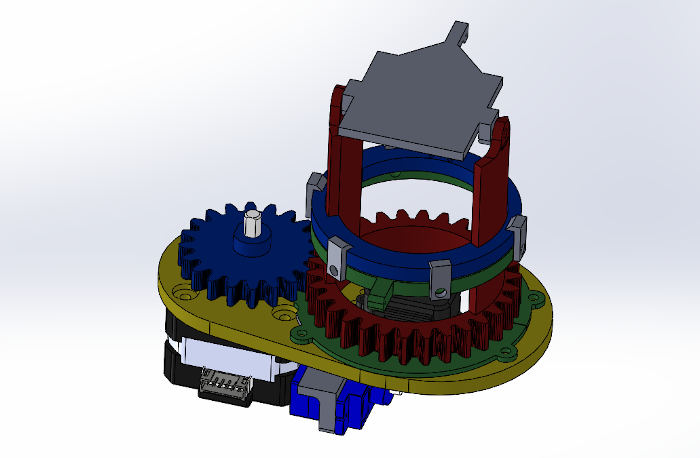

Render from the Lidar in Solidworks 3D model in SolidWorks

In order to get independent control of both axes of motion, my design uses an assembly that works in a similar fashion to helicopters' swashplates: the motion is transferred from the stationary servo-motors to the rotating mirror through an intermediary sliding interface.

The yaw motor is a NEMA 17HS4023 "pancake" stepper motor. The tilt actuators are a pair of cheap 9g servos.

All the parts where 3D-printed on my Anet A8 with 0.2mm layer height, in PLA. Support material should only be activated for the rotor. Light sanding may be needed on some parts to get a perfect fit.

To reduce the amount of friction, I put a drop of medium viscosity silicone oil on the base-rotor interface.

Additional hardware is required:

  • 40×40mm piece of mirror,
  • 15 M3×6mm screws,
  • Paper clips for the linkages (bending patterns are in the projects files),
  • 2 M2.5 screws.

Electronics

The electronics are based on a STM32 board commonly referred to as "blue pill". This 32-bit chip is much faster than the Arduino (72 MHz vs 16 MHz clock) and has several hardware serial ports, which is mandatory for this project.

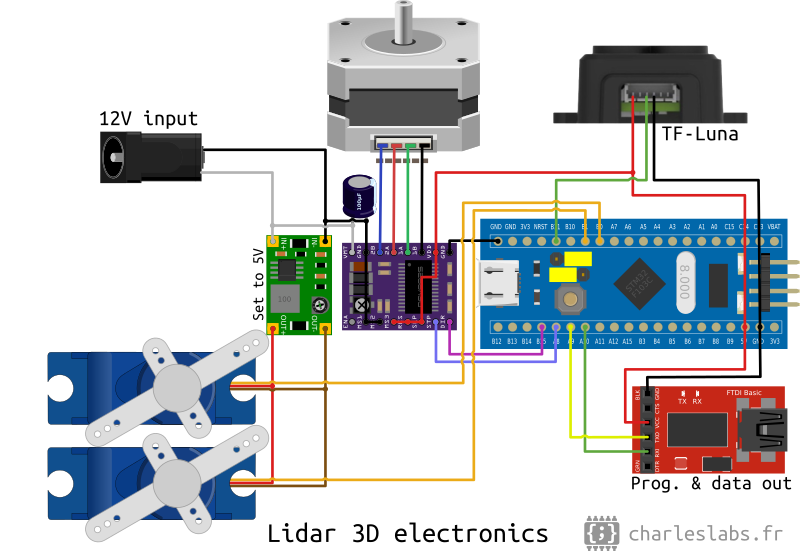

This is the complete circuit diagram:

Lidar circuit diagram

I used a TF-Luna Lidar, but it should be fully interchangeable with the more common TF-mini. This sensor uses ToF (time of flight) with laser bursts in order to measure the range with a resolution of 1cm for less than $20. The beam width is about 2.3°.

The stepper motor driver is a DRV8825 module. The maximum phase current must be adjusted with the potentiometer to achieve reliable movement without motor heating.

To supply 12V, I used an old laptop charger. A "mini 360" DC-DC buck converter module is used to power the servo-motors from the 12V rail.

I built this circuit on a breadboard.

Note: The STM32 could probably replaced with an Arduino Mega. However, my code is currently incompatible with this board (pin assignments are different).

Firmware (MCU code)

The micro-controller's firmware does 3 things: drive the motors, convert the measurements to Cartesian coordinates and send them to the computer through a serial link.

Because of the Lidar's geometry, there are some transformations to figure out the direction of the lidar beam. For the yaw axis (θ), it is trivial:

$\Theta \text{ [rad]} = \frac{\text{Steps in current turn}}{\text{Steps per turn}} \times 2 \pi$

For the tilt axis (φ), the math is a bit trickier. First, the servo motors pushes a linkage that lifts the carriage on the rotor, that changes the pitch angle of the mirror through another linkage. This equation is an approximation of this relation:

$\alpha_{mirror} \text{ [deg]} = \frac{\text{Servo arm length}}{\text{Mirror axis length}} \times \alpha_{servo} + \text{Init. angle} \approx  -0.3 \times \alpha_{servo} + 71$

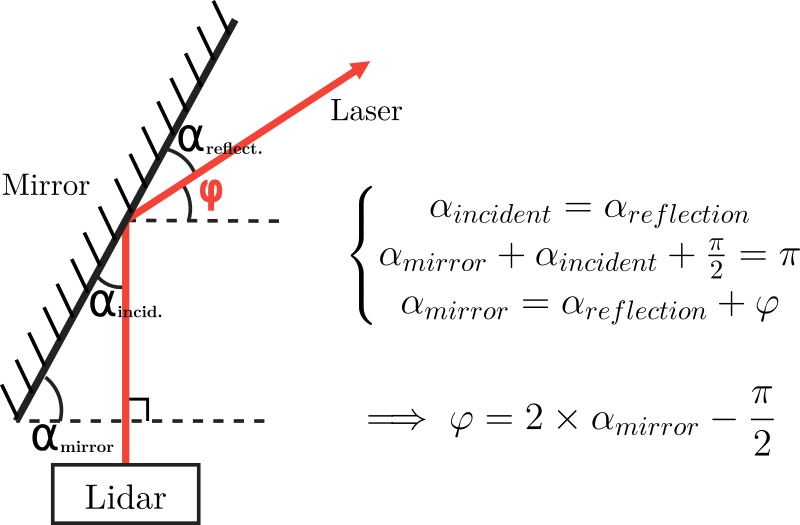

Then, from the angle of the mirror, we can compute the angle of the laser beam relative to the horizontal:

$\left\{\begin{matrix} \alpha_{incident} = \alpha_{reflection} \\  \varphi + \alpha_{incident} + \frac{\pi}{2} = \pi \\ \alpha_{mirror} = \alpha_{reflection} + \varphi \end{matrix}\right. \implies \varphi = 2 \times \alpha_{mirror} - \frac{\pi}{2}$

Finally, using the spherical to Cartesian coordinates system conversion formulae, it outputs the position of the point on the serial port:

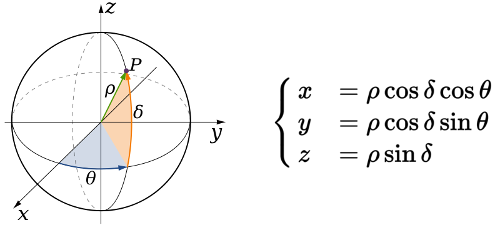

Spherical coordinates conversion formulae

Interestingly, the TF sensors also output the strength of the measurements, from 0 to 65535. This information is added to the Lidar's serial output, and may be use as a confidence value, for instance.

Hence, this is typical output into the serial terminal (x, y, z and signal strength separated by tabulations):

44    24    8    8347
37    27    8    6910
31    29    7    7839
...

To program the micro-controller, I use the Arduino IDE with stm32duino, using a serial to USB converter, as shown in the diagram. Note that the jumpers must be in the configuration BOOT0=0 and BOOT1=1 for programming (see on the electronics diagram).

Software (3D Lidar viewer)

Finally, to acquire and display the Lidar data, I created a visualization software using Processing. It is a very convenient open-source Java framework made for 2D or 3D graphical user interfaces and renders.

LidarViewer reads the serial port to get the data; displays it as a 3D point cloud we can zoom, pan, rotate and move; and saves it to a file so we can use it later on (in Meshlab for instance).

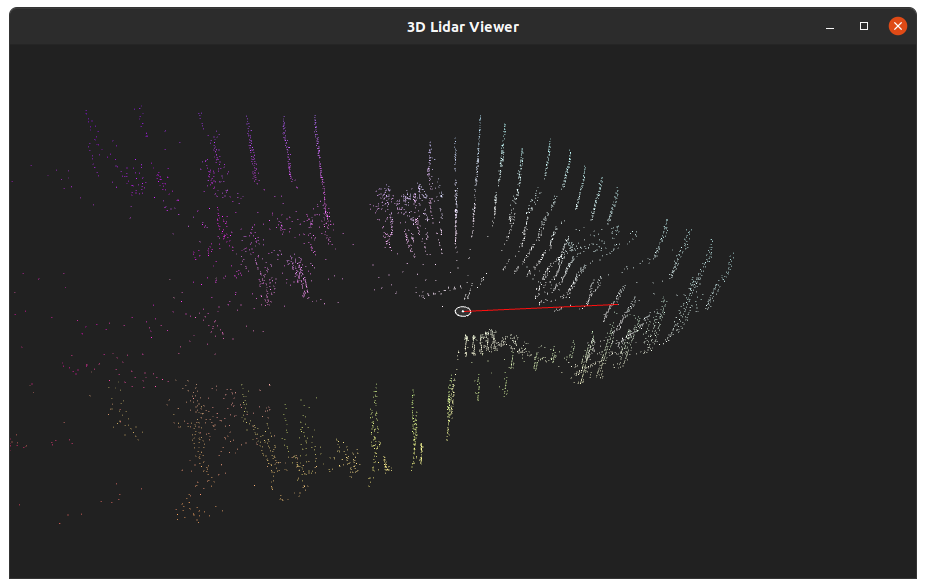

Screenshot of LidarViewer

The key bindings are: arrow keys or mouse to move the camera, [S] to save the data (opens a file selection window) and [X] to clear the points.

Conclusion

This new iteration of my Lidar experiments improves a lot on my previous attempt by virtue of the better mechanical construction.

Advantages

The biggest advantage with this design is the versatility, thanks to its construction. Because we have full control over the yaw and tilt axes, we can tailor the scanning method to our needs, in software. For instance, we can perform very high resolution, slow scans, if the scanning rate is not a concern. On the contrary, we can achieve very fast speeds (up to 300 RPM) with a coarse resolution, and fill the point cloud by staggering the measurements. We could even do active tracking or any other way of using both axes of motion.

It is also quite inexpensive, easy to replicate as a result of using 3D-printing and common parts and very capable.

Limitations

The main limitation is the mechanical tolerances that are required for the 3D-printing process. This introduces some slop in the measurement, and makes a lot of noise at high speeds. This could of course be improved by machining it in metal for instance, but it defeats the purpose of this project.

There is another drawback in the Lidar's current geometry: the tilt axis' aperture is limited to about 45°: about 20° from the horizon in both directions. This could probably be optimized, but it cannot reach 180°. However, for use in robotics for instance, it is the zone of interest anyways. Hence, this is only a limitation if the lidar is intended to do full scans of room, for instance.
